Q50-RTR - NUtec Digital Ink

quartz

Q50-RTR

Features

Designed for Roll-to-Roll Applications
Developed for Mercury Vapour UV Lamps
Fast Curing
High Density Colour
Supported by NUtec Digital’s Ink Delivery System (IDS) Warranty

Overview

The Quartz Q50-RTR is a wide-format Roll-to-Roll UV-Curable ink designed for a large number of self-adhesive and flexible media applications. It is a high density ink that cures with Mercury Vapour UV lamps. This fast curing ink is suitable for high speed printing.

This formulation is designed for compatibility across a broad range of print head types and features a high density colour gamut for bright, vivid images.

Provided the inks are used in regular applications, using suitable substrates, the printed images will last for up to 12 months.

Print head compatibility

Fujifilm Dimatix®: Polaris PQ-512/(15 & 35pl), Galaxy JA 256/(30, 50 & 80pl), SE 128 (30pl), SM 128 (50pl), SL 128 (80pl), Nova JA 256/80; Konica Minolta®: KM512 14pl, KM1024 14pl; Xaar®: 501 GS8 U 8-40pl, 128 40pl; ToshibaTec®: CE2, CA3, CE4 (6-90pl) and CA4 (6-42pl); Ricoh®: MH1801/1901 Gen3-E1, MH1603/1803/1903 Gen3-E3, MH2620/2820 Gen4; Seiko®: 508GS 12pl & SPT510 (35 & 80pl)

Packaging configurations

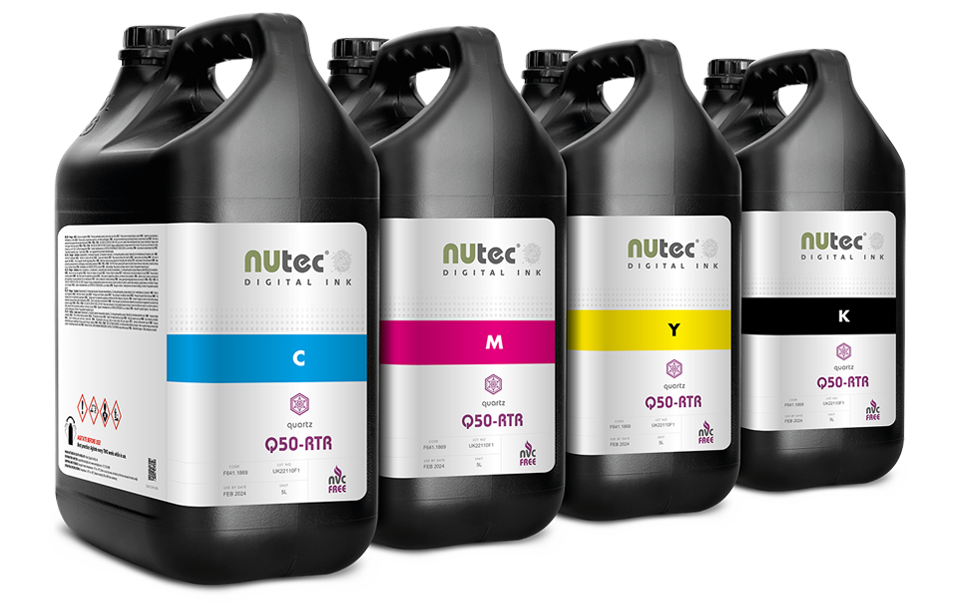

5L bottles

Colours and Shelf-Life

CMYKLcLm - 15 months

Shipping and Storage Information

Storage & transit temperatures: +5°C to +35°C. Store in a cool, dry area, not directly on the floor and away from direct sunlight.

Operating Specifications

Temperature: +19°C to +28°C. Relative Humidity: 30% to 80% Non-condensing. To be used in conjunction with NUtec maintenance and cleaning solutions.

Downloads

UV Ink maintenance guide fact-sheet

UV Ink Site considerations fact-sheet

Kindly note: Not all products are available in every country or region. Contact sales@nutecdigital.com for your region specific inks.

DISCLAIMER: While the information and technical advice provided are based on our current knowledge, they do not constitute a guarantee of specific product properties nor a legally binding agreement. It remains the sole responsibility of the user to determine suitability for the intended purpose through adequate testing. We shall not be liable for any loss, damage, or claims arising, directly or indirectly, from improper storage, handling, maintenance, use with incompatible systems, or failure to comply with applicable safety and regulatory requirements.
